Client: Hyundai Heavy Industries
Product: Variable frequency resonant test system
Rating capacity: 6300kVA
Rating voltage: 700kV
Description:
Variable frequency resonant test systems operate in a frequency range from 20Hz to 300Hz, ideal for field commissioning test of power cables and GIS/GIL according to IEC, and test object is connected to the test system using a flexible high-voltage connection.

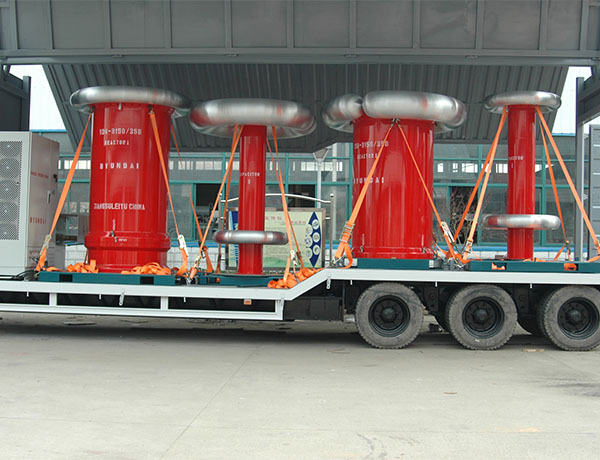

The HV reactor features a modular design, several reactors can be connected in series or parallel to achieve higher test voltages or power. The test system can be transported in a container without taking up much space, or it can be set up on a trailer.
